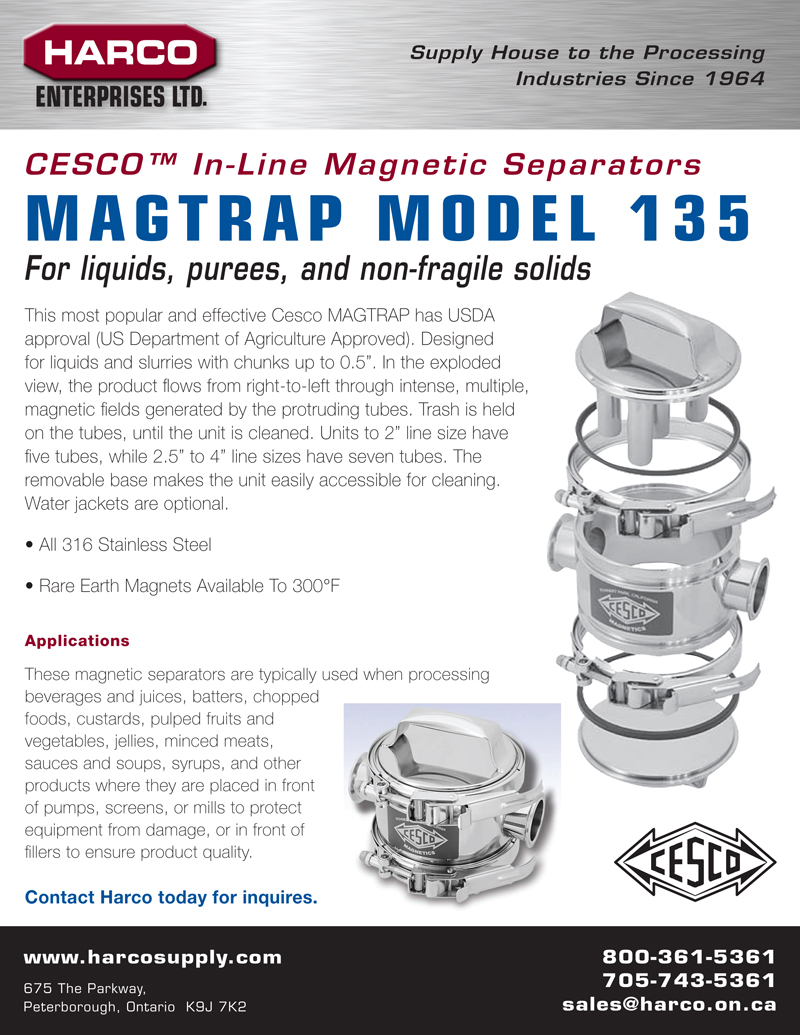

MAGTRAP MODEL 135
High-Performance Magnetic Separator
Harco’s most popular and highly effective Cesco MAGTRAP Model 135 is USDA-approved for use in food processing applications. Engineered for liquids, purees, and non-fragile solids, as well as slurries containing chunks up to 0.5″, this model ensures superior magnetic separation performance.
Advanced Magnetic Filtration
As the product flows from right to left through the unit, it passes through intense, multiple magnetic fields generated by the protruding tubes. These powerful rare-earth magnets effectively capture ferrous contaminants, holding them on the tubes until the unit is cleaned.
Optimized Design for Maximum Efficiency
- All 316 Stainless Steel – Durable construction for long-lasting performance.
- Rare Earth Magnets Available To 300°F – Ensures effective operation in high-temperature applications.
- Tube Configuration: Units up to 2” line size contains five tubes, while models ranging from 2.5″ to 4” line sizes feature seven tubes for enhanced separation.
- Easy Maintenance: The removable base allows for quick and effortless cleaning.
- Custom Options: Water jackets are available for temperature-sensitive applications.
For superior contaminant removal in liquid and slurry applications, trust the MAGTRAP Model 135 from Harco. Contact us today to learn more about how this unit can enhance your processing operations.
