CB+ Pumps

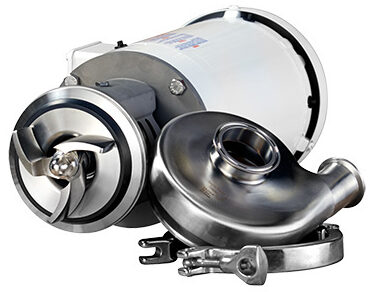

AMPCO CB+ CRAFT BREW CENTRIFUGAL PUMPS
Harco offers the Ampco CB+ Craft Brew Centrifugal Pumps, designed specifically for the craft brewing and distilling industries. Featuring a sanitary internal seal, these pumps ensure easy cleaning, prevent pooling, allow higher seal pressure with less leakage, and minimize product buildup by keeping seal faces cooler.
Addressing common brewing challenges, the Ampco CB+ pump reduces product buildup and leaking, especially when pumping near-boiling wort. By promoting cooling through its internal seal, and preventing wort solids from pooling with an internal spring, these pumps enhance brewing efficiency.
Incorporating the same shaft collar and threaded impeller nut as the Ampco AC+ pumps, the Ampco CB+ pumps eliminate shaft wobble and secures the impeller firmly in place. CIP procedures are facilitated by two specialized gaskets that allow cleaning behind the impeller, thereby reducing rattling at lower speeds.
Available in 8 model sizes, the Ampco CB+ Craft Brew Centrifugal Pumps are dimensionally and hydraulically interchangeable with Ampco’s AC, AC+, and competitor C Series pumps. Brewers can thus focus on creating their next signature beer without the concern of leaks.
Ampco CB+ Series Craft Brew Centrifugal Pump Features
- 316L Stainless Steel
- 304 Stainless Steel Adapter
- Dynamically Balanced Impeller
- 316L Stainless Steel Shaft
Ampco CB+ Series Craft Brew Pumps Performance Overview
- Models: 10
- Max Discharge Pressure: 130 PSI / 9 BAR
- Max Flow Rate: 920 GPM / 209 Mᵌ/ hr
- Max Viscosity: 1,200 cP
- Seal Specifications: 1 Seal Options
Contact Harco for your Ampco CB+ Craft Brew Pump or CB+ Pump replacement part inquires.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS
CB+ Conversion Kits
| Model | Part Number | Description |
| CB+114 | CB+114-CK | CB+SEAL CONVERSION KIT FOR AC+114 TO CB+114 |
| CB+216 | CB+216-CK | CB+SEAL CONVERSION KIT FOR AC+216 TO CB+216 |
| CB+218/328 | CB+218/328-CK | CB+SEAL CONVERSION KIT FOR AC+218/328 TO CB+218/328 |
| AC+4440/6610 | CB+4410/6410-CK | CB+SEAL CONVERSION KIT FOR AC+4410/6410 TO CB+4410/6410 |
CB+ Conversion kits include a CB+ backplate and the CB+ balanced internal seal with silicon carbide seat, rotary seal (carbon or Teflon option) and Viton elastomers.
CB+ Seal Kits
| Model | Part Number | Description |
| CB+114 | GS8101150 | CB+ 114 SEAL KIT SC/CA/VI |
| CB+216 | GS8101250 | CB+ 216 SEAL KIT SC/CA/VI |
| CB+218/328 | GS8101350 | CB+ 218/328 SEAL KIT SC/CA/VI |
| CB+4410 | GS8101450 | CB+ 4410 SEAL KIT SC/CA/VI |
| Model | Part Number | Description |
| CB+114 | GS8101152 | CB+ 114 SEAL KIT SC/TF/VI |
| CB+216 | GS8101255 | CB+ 216 SEAL KIT SC/TF/VI |
| CB+218/328 | Contact Harco | CB+ 218/328 SEAL KIT SC/TF/VII |
| CB+4410 | Contact Harco | CB+ 4410 SEAL KIT SC/TF/VI |
CB+ replacement kits include the seal, impeller nut and back gasket, and casing gasket
CB+ 2 Conversion Kits
| Model | Frame size | Part # | Description |
| CB+114 | 56C | CB+2-114-CK/56 | CB+SEAL CONVERSION KIT FOR AC114 WITH 56C FRAME TO CB+114 |
| CB+114 | 140TC | CB+2-114-CK/14 | CB+SEAL CONVERSION KIT FOR AC114 WITH 140TC FRAME TO CB+114 |
| CB+114 | 180TC | CB+2-114-CK/18 | CB+SEAL CONVERSION KIT FOR AC114 WITH 180TC FRAME TO CB+114 |
| CB+216 | 56C | CB+2-216-CK/56 | CB+SEAL CONVERSION KIT FOR AC216 WITH 56C FRAME TO CB+216 |
| CB+216 | 140TC | CB+2-216-CK/14 | CB+SEAL CONVERSION KIT FOR AC216 WITH 140TC FRAME TO CB+216 |
| CB+216 | 180TC | CB+2-216-CK/18 | CB+SEAL CONVERSION KIT FOR AC216 WITH 180TC FRAME TO CB+216 |
| CB+216 | 210TC | CB+2-216-CK/21 | CB+SEAL CONVERSION KIT FOR AC216 WITH 210TC FRAME TO CB+216 |
| CB+216 | 250TC | CB+2-216-CK/25 | CB+SEAL CONVERSION KIT FOR AC216 WITH 250TC FRAME TO CB+216 |
| CB+218 | 140TC | CB+2-218-CK/14 | CB+SEAL CONVERSION KIT FOR AC218 WITH 140TC FRAME TO CB+218 |
| CB+218 | 180TC | CB+2-218-CK/18 | CB+SEAL CONVERSION KIT FOR AC218 WITH 180TC FRAME TO CB+218 |
| CB+218 | 210TC | CB+2-218-CK/21 | CB+SEAL CONVERSION KIT FOR AC218 WITH 210TC FRAME TO CB+218 |
| CB+218 | 250TC | CB+2-218-CK/25 | CB+SEAL CONVERSION KIT FOR AC218 WITH 250TC FRAME TO CB+218 |
| CB+218 | 280TSC | CB+2-218-CK/28TS | CB+SEAL CONVERSION KIT FOR AC218 WITH 280TSC FRAME TO CB+218 |
| CB+328 | 180TC | CB+2-328-CK/18 | CB+SEAL CONVERSION KIT FOR AC328 WITH 180TC FRAME TO CB+328 |
| CB+328 | 210TC | CB+2-328-CK/21 | CB+SEAL CONVERSION KIT FOR AC328 WITH 210TC FRAME TO CB+328 |
| CB+328 | 250TC | CB+2-328-CK/25 | CB+SEAL CONVERSION KIT FOR AC328 WITH 250TC FRAME TO CB+328 |
| CB+328 | 280TSC | CB+2-328-CK/28TS | CB+SEAL CONVERSION KIT FOR AC328 WITH 380TSC FRAME TO CB+328 |
| CB+328 | 320TC | CB+2-328-CK/32 | CB+SEAL CONVERSION KIT FOR AC328 WITH 320TC FRAME TO CB+328 |
| CB+328 | 360TSC | CB+2-328-CK/36TS | CB+SEAL CONVERSION KIT FOR AC328 WITH 360TSC FRAME TO CB+328 |
| CB+4410 | 210TC | CB+2-4410-CK/21 | CB+SEAL CONVERSION KIT FOR AC4410 WITH 210TC FRAME TO CB+4410 |
| CB+4410 | 250TC | CB+2-4410-CK/25 | CB+SEAL CONVERSION KIT FOR AC4410 WITH 250TC FRAME TO CB+4410 |
| CB+4410 | 280TSC | CB+2-4410-CK/28TS | CB+SEAL CONVERSION KIT FOR AC4410 WITH 280TSC FRAME TO CB+4410 |
| CB+4410 | 320TC | CB+2-4410-CK/320 | CB+SEAL CONVERSION KIT FOR AC4410 WITH 320TC FRAME TO CB+4410 |
CB+2 conversion kits include CB+ backplate, CB+ balanced internal seal with silicon carbide seat, carbon rotary and viton elastomers, stub shaft, collar, impeller, impeller key, impeller nut & impeller nut gaskets.
