LC/LD/LF Series Pumps

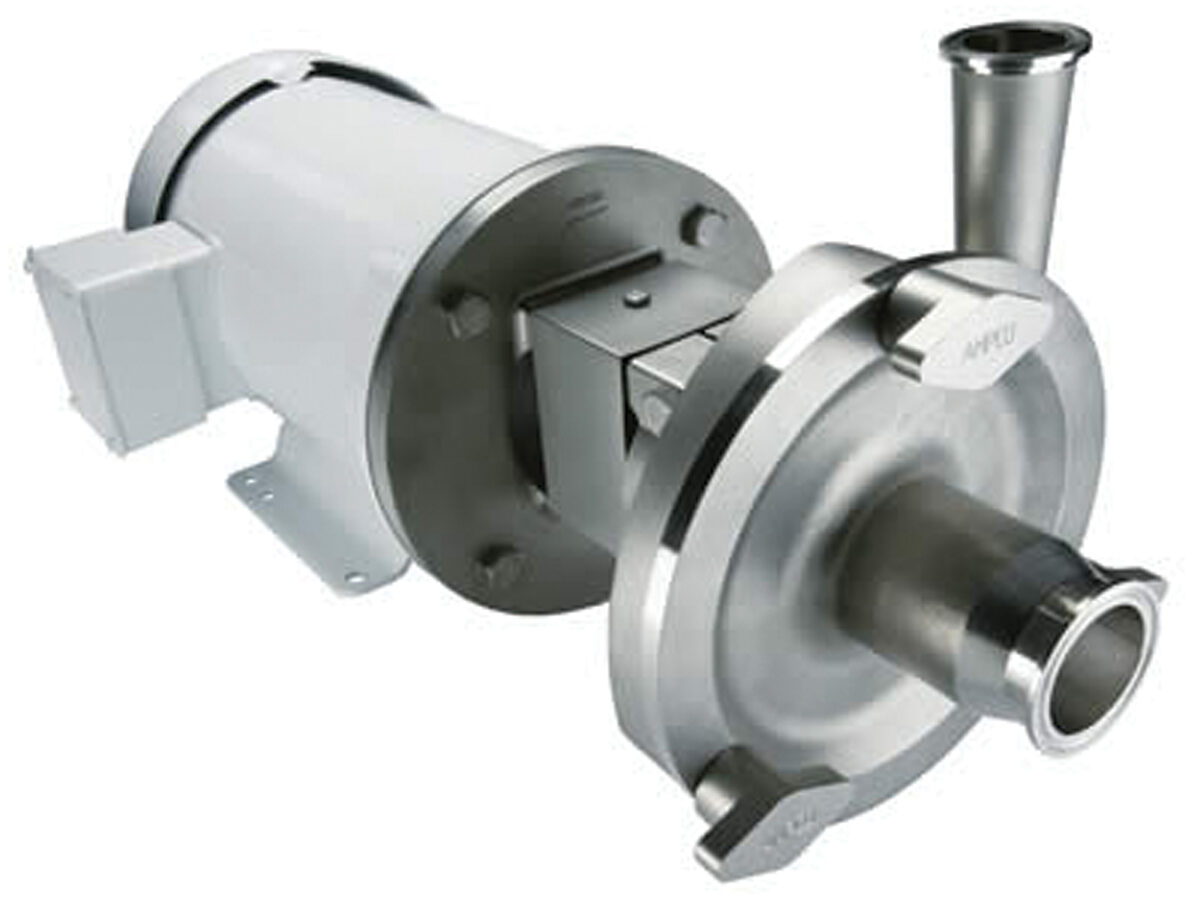

AMPCO LC SERIES CENTRIFUGAL PUMPS
Introducing the LC Series: Your Trusted Single Seal Sanitary Pump
At Harco, we proudly present Ampco’s LC Series centrifugal pumps, a proven and trusted single mechanical seal sanitary pump designed for a wide range of applications. With its simplistic yet efficient design, the Ampco LC Series centrifugal pump has earned its place as one of the most commonly installed pumps worldwide.
Crafted from high-quality 316L stainless steel, the Ampco LC Series centrifugal pumps boast impeccable durability and reliability. As a standard feature, it includes a 304 stainless steel adapter, ensuring longevity and efficient operation. The Ampco LC Series centrifugal pumps are engineered with heavy wall construction to withstand the test of time, making them ideal for gentle and efficient applications, such as those in the beverage and dairy industries.
What sets Ampco’s LC Series centrifugal pumps apart are their compatibility and interchangeability with Fristams’ FPX pumps and many competing brands, both in terms of dimensions and hydraulics. Thanks to its internal seal design and balanced impeller, the Ampco LC Series centrifugal pumps ensure a smooth, quiet operation while extending the life of the seal.
Ampco LC Single Seal Standard Material:
- Silicon carbide / Carbon / Viton
- Optional chrome oxide rotating element
Ampco LC Series Centrifugal Pump Features:
- 316L Stainless Steel Heavy Wall Construction
- Precision Cast and Machined for Quality
- 304 Stainless Steel Adapter for Longevity
- Balanced Impellers for Efficient Performance
- 316L Stainless Steel Shaft for Durability
Ampco LC Series Centrifugal Pump Performance Overview:
- Models: 15
- Max Inlet Pressure: 150 PSI / 10 BAR
- Max Flow Rate: 800 GPM / 182 Mᵌ/hr
- Max Viscosity: 1,200 cP
- Seal Specifications: 3 Seal Options
Typical Applications for the Ampco LC Series Centrifugal Pump:
- BEVERAGES: Fruit juices, fruit concentrate, mash, high fructose corn syrup, liquor, wine, beer, wort, yeast
- CANDY: Corn syrup, chocolate, sugar solutions
- CIP: Caustics, enzyme cleaners, solutions
- COSMETICS: Lotions, soaps, shampoo
- DAIRY: Cream, ice cream, buttermilk, milk, whey
- OILS: Salad, frying, cooking
- PERSONAL CARE: Cologne, mouthwash
- PHARMACEUTICALS & BIOTECH: Cutting-edge solutions for the pharmaceutical and biotech industries.
Harco is your trusted source for Ampco’s LC Series Centrifugal Pumps. With industry-leading delivery times, superior 304 stainless steel adaptors, and a maintenance-friendly heavy-duty design, the Ampco LC Series Centrifugal Pumps are ready to meet your processing challenges head-on. Whether you’re looking for a new Ampco LC Series Centrifugal Pump or replacement parts, contact Harco today to experience the benefits of this exceptional pump solution.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS FOR LC/LD
Ampco LC/LD Seal Kits #633
| Seal # | Shaft Size | Part # | Description |
| 633 | 18 mm | GS2600002-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 633 | 18 mm | GS2600002-SC/TC | Single Seal: Silicon carbide / Carbon / Viton – New Design Tapered Carbon (C / N / V) |
| 633 | 18 mm | GS2600002-CO | Single Seal: Chrome oxide / Carbon / Viton (FR / N / V) |
| 633 | 18 mm | GS2600005 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 633 | 18 mm | GS2600135 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 633 | 18 mm | GS2600000-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 633 | 18 mm | GS2600006 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 633 | 18 mm | GS2600140 | Double Seal: Chrome oxide / Silicon carbide / Ceramic / Viton (FR / C / CE / V) |
| 633 | 18 mm | GS15600000 | Stationary Carbon |
Ampco LC/LD Seal Kits #735
| Seal # | Shaft Size | Part # | Description |
| 735 | 22 mm | GS2600127-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 735 | 22 mm | GS2600127-SC/TC | Single Seal: Silicon carbide / Carbon / Viton -New Design Tapered Carbon (C / N / V) |
| 735 | 22 mm | GS2600127-CO | Single Seal: Chrome Oxide / Carbon / Viton (FR / N / V) |
| 735 | 22 mm | GS2600143 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 735 | 22 mm | GS2600129 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 735 | 22 mm | GS2600128-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 735 | 22 mm | GS2600130 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 735 | 22 mm | GS2600128 | Double Seal: Chrome oxide / Carbon / Ceramic / Viton (FR / N / CE / V) |
| 735 | 22 mm | GS15600008 | Stationary Carbon |
Ampco LC/LD Seal Kits #736
| Seal # | Shaft Size | Part # | Description |
| 736 | 30 mm | GS2600009-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 736 | 30 mm | GS2600009-SC/TC | Single Seal: Silicon carbide / Carbon / Viton – New Design Tapered Carbon (C / N / V) |
| 736 | 30 mm | GS2600009-CO | Single Seal: Chrome Oxide / Carbon / Viton (FR / N / V) |
| 736 | 30 mm | GS2600141 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 736 | 30 mm | GS2600132 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 736 | 30 mm | GS2600131-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 736 | 30 mm | GS2600139 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 736 | 30 mm | GS2600131 | Double Seal: Chrome oxide / Carbon / Ceramic / Viton (FR / N / CE / V) |
| 736 | 30 mm | GS15600047 | Stationary Carbon |
Mechanical Seal Kits Include
Mechanical seal, seal gaskets, seal O-rings, and impeller nut gasket
Casing gaskets must be purchased separately.
Seal Details
C = Silicon carbide
N = Carbon
CE = Ceramic
V = Viton
FR = Chrome oxide
