LC/LD/LF Series Pumps

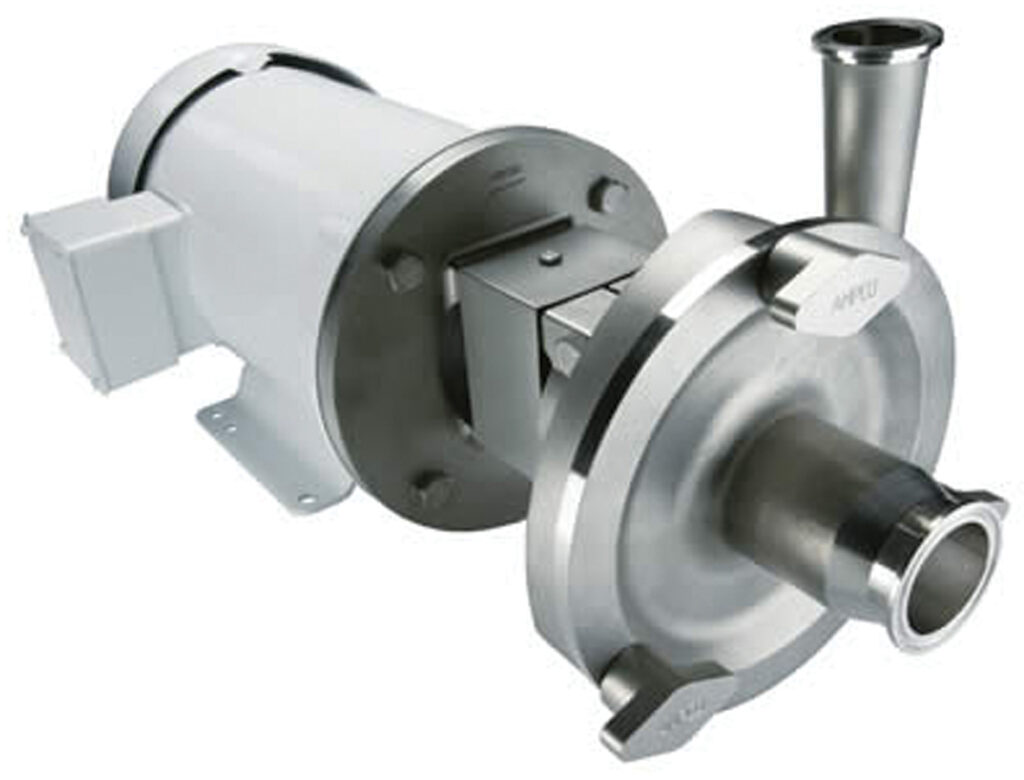

AMPCO LD SERIES CENTRIFUGAL PUMPS
Introducing the LD Series: Your Trusted Double Seal Sanitary Pump
At Harco, we proudly present Ampco’s LD Series Centrifugal Pumps. These Ampco LD Series Centrifugal Pumps are the epitome of precision engineering, designed to meet the most demanding industrial and sanitary pumping needs. When you require a double-seal solution, our LD Series centrifugal pumps from Ampco are the ultimate choice.
Ampco’s LD Series centrifugal pumps are a close-coupled iteration of the renowned Ampco LC Series centrifugal pumps, featuring a double mechanical seal for enhanced performance. Uniquely crafted by Ampco Pumps, these centrifugal pumps are engineered to excel in various industries.
The LD Series centrifugal pumps from Ampco are cast and machined from 316L stainless steel and come equipped with a 304 stainless steel adapter, ensuring superior durability and corrosion resistance. This double-seal design is purpose-built to handle sticky, abrasive, and sugary products, setting them apart from the competition. Thanks to its streamlined components, the inclusion of a buffer fluid in the design makes maintenance more accessible.
Additionally, the Ampco LD Series centrifugal pumps are your ideal choice for applications involving abrasive or volatile products, as well as vacuum processes. They are also dimensionally and hydraulically interchangeable with Fristams’ FP, making the Ampco LD Series Centrifugal Pumps an excellent alternative for those looking to upgrade their equipment.
LD Double SEAL Standard Material:
- Silicon carbide / Carbon / Ceramic / Viton
- Optional chrome oxide rotating element
Ampco LD Series Centrifugal Pump Features:
- 316L Stainless Steel Heavy Wall Construction
- Precision Cast and Machined for Quality
- 304 Stainless Steel Adapter for Longevity
- Balanced Impellers for Efficient Performance
- 316L Stainless Steel Shaft for Durability
- Easy to Maintain with Less Components
Ampco LD Series Centrifugal Pump Performance Overview:
- Models: 15
- Max Inlet Pressure: 150 PSI / 10 BAR
- Max Flow Rate: 800 GPM / 182 mᵌ/hr
- Max Viscosity: 1,200 cP
- Seal Specifications: 3 Seal Options
Typical Applications for the Ampco LD Series Centrifugal Pump:
- BEVERAGES: Fruit juices, fruit concentrate, mash, high fructose corn syrup, liquor, wine, beer, wort, yeast
- CANDY: Corn syrup, chocolate, sugar solutions
- CIP: Caustics, enzyme cleaners, solutions
- COSMETICS: Lotions, soaps, shampoo
- DAIRY: Cream, ice cream, buttermilk, milk, whey
- OILS: Salad, frying, cooking
- PERSONAL CARE: Cologne, mouthwash
- PHARMACEUTICALS & BIOTECH: Cutting-edge solutions for the pharmaceutical and biotech industries.
Contact Harco for Your Ampco LD Series Centrifugal Pump Needs:
For all your Ampco LD Series Centrifugal Pump requirements, replacement parts, or inquiries, Harco is your trusted partner. We are committed to delivering top-of-the-line solutions that meet your industrial and sanitary pumping needs. Reach out to us today to explore the full range of Ampco LD Series Centrifugal Pumps and experience industry-leading performance and reliability. Your success is our priority.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS FOR LC/LD
Ampco LC/LD Seal Kits #633
| Seal # | Shaft Size | Part # | Description |
| 633 | 18 mm | GS2600002-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 633 | 18 mm | GS2600002-SC/TC | Single Seal: Silicon carbide / Carbon / Viton – New Design Tapered Carbon (C / N / V) |
| 633 | 18 mm | GS2600002-CO | Single Seal: Chrome oxide / Carbon / Viton (FR / N / V) |
| 633 | 18 mm | GS2600005 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 633 | 18 mm | GS2600135 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 633 | 18 mm | GS2600000-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 633 | 18 mm | GS2600006 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 633 | 18 mm | GS2600140 | Double Seal: Chrome oxide / Silicon carbide / Ceramic / Viton (FR / C / CE / V) |
| 633 | 18 mm | GS15600000 | Stationary Carbon |
Ampco LC/LD Seal Kits #735
| Seal # | Shaft Size | Part # | Description |
| 735 | 22 mm | GS2600127-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 735 | 22 mm | GS2600127-SC/TC | Single Seal: Silicon carbide / Carbon / Viton -New Design Tapered Carbon (C / N / V) |
| 735 | 22 mm | GS2600127-CO | Single Seal: Chrome Oxide / Carbon / Viton (FR / N / V) |
| 735 | 22 mm | GS2600143 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 735 | 22 mm | GS2600129 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 735 | 22 mm | GS2600128-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 735 | 22 mm | GS2600130 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 735 | 22 mm | GS2600128 | Double Seal: Chrome oxide / Carbon / Ceramic / Viton (FR / N / CE / V) |
| 735 | 22 mm | GS15600008 | Stationary Carbon |
Ampco LC/LD Seal Kits #736
| Seal # | Shaft Size | Part # | Description |
| 736 | 30 mm | GS2600009-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 736 | 30 mm | GS2600009-SC/TC | Single Seal: Silicon carbide / Carbon / Viton – New Design Tapered Carbon (C / N / V) |
| 736 | 30 mm | GS2600009-CO | Single Seal: Chrome Oxide / Carbon / Viton (FR / N / V) |
| 736 | 30 mm | GS2600141 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 736 | 30 mm | GS2600132 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 736 | 30 mm | GS2600131-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 736 | 30 mm | GS2600139 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 736 | 30 mm | GS2600131 | Double Seal: Chrome oxide / Carbon / Ceramic / Viton (FR / N / CE / V) |
| 736 | 30 mm | GS15600047 | Stationary Carbon |
Mechanical Seal Kits Include
Mechanical seal, seal gaskets, seal O-rings, and impeller nut gasket
Casing gaskets must be purchased separately.
Seal Details
C = Silicon carbide
N = Carbon
CE = Ceramic
V = Viton
FR = Chrome oxide
