LKH Prime UltraPure Pumps

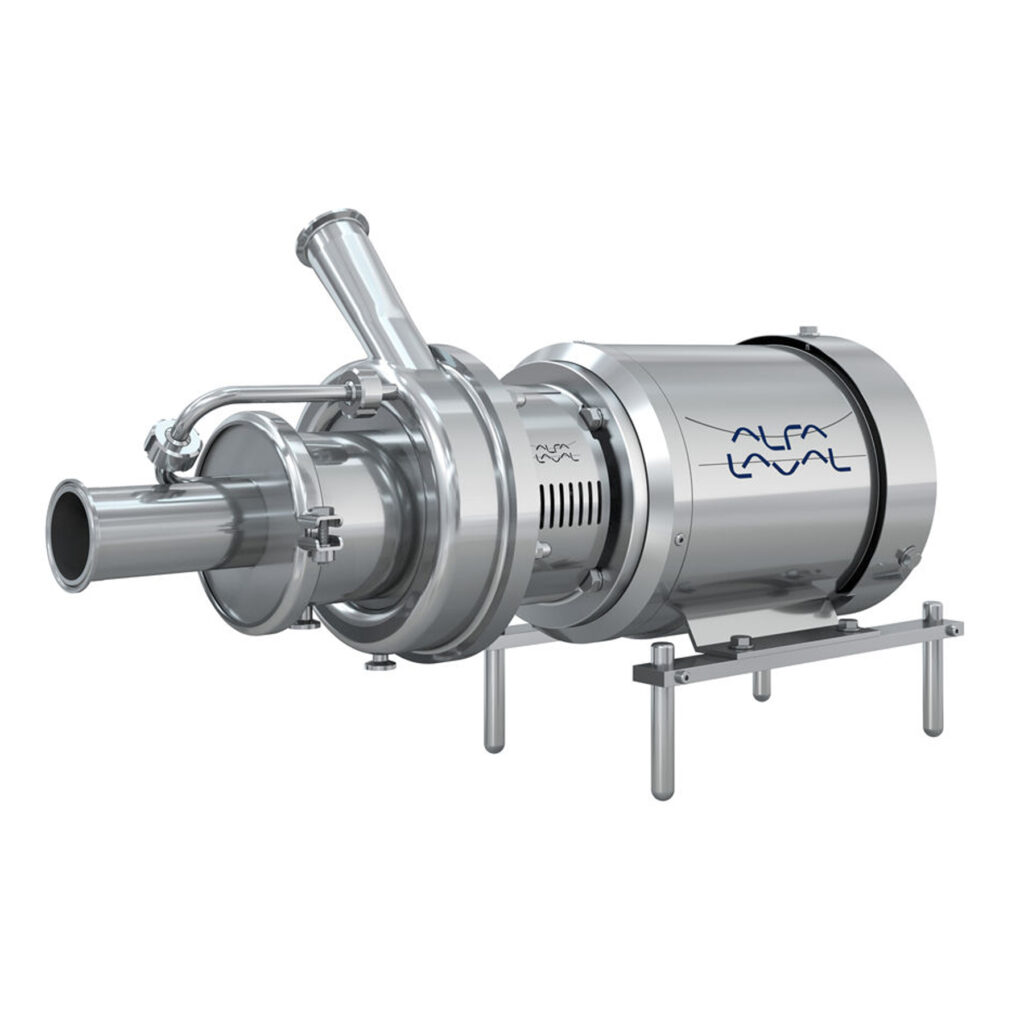

ALFA LAVAL LKH PRIME ULTRAPURE CENTRIFUGAL PUMPS
Harco offers the Alfa Laval LKH Prime UltraPure centrifugal pumps which are an efficient, versatile and hygienic self-priming pump. Using a combination of air-screw technology and advanced design to meet the most stringent requirements in the pharmaceutical industry. Primarily used for Cleaning-in-Place duties containing entrained air, it can also pump product, reducing capital investment.
Unlike conventional self-priming pumps, Alfa Laval’s LKH Prime UltraPure has an impeller which can be trimmed to for your application.
Alfa Laval’s LKH Prime UltraPure centrifugal pump are easy and cost effective to service and maintain. By sharing common parts with other Alfa Laval LKH range pumps, Alfa Laval LKH Prime UltraPure offers low cost of ownership and increased uptime.
Benefits:
- Single mechanical shaft seal
- Advanced hygienic design
- High efficiency
- Low noise and high performance
- Versatile design can be used for cleaning-in-Place and pumping product
Pump Configuration Options:
- Impeller with reduced diameter
- Motor with increased safety/flame proof motor
- Double mechanical shaft seal
- Product wetted surface finish Ra ≤ 0.8 µm; Ra ≤ 0.5 µm or electropolished to Ra ≤ 0.4 μm
- Product wetted elastomers Fluorinated rubber (FPM) or EPDM
- 0.5″ tri-clamp drain connections (two connections)
- No drain
- 0° outlet position
- Hydrostatic testing with certificate

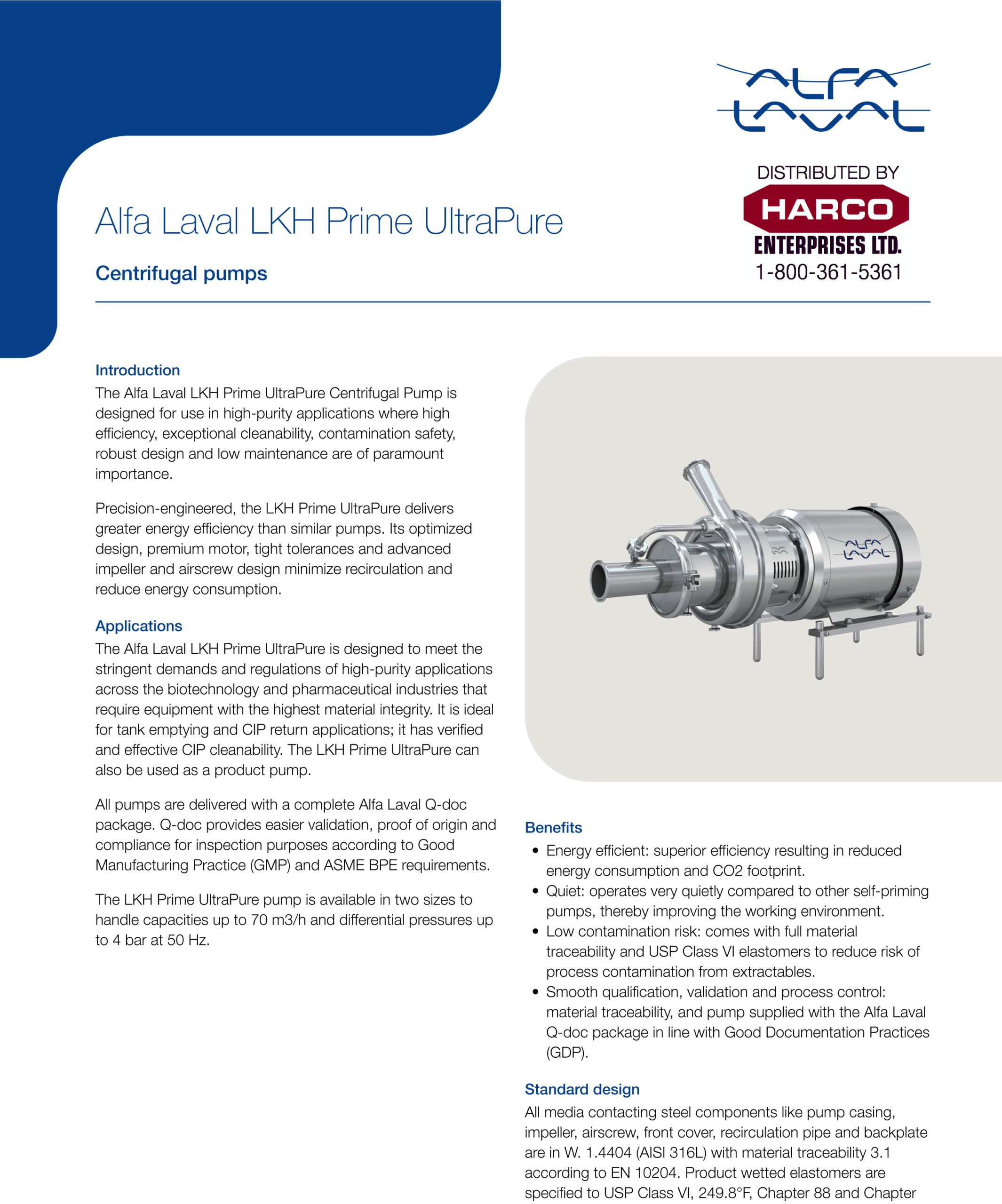

All Alfa Laval UltraPure pumps are supplied with Alfa Laval Q-doc, a comprehensive documentation package that provides full transparency of the entire supply chain, from raw material to final equipment delivery. This smooth’s purchasing and installation procedures as well as facilitates qualification, validation and change control procedures. Based on GDP (Good Documentation Practice), Alfa Laval Q-doc covers every aspect of UltraPure equipment supply and provides customers with transparent and well-documented quality assurance of the sourced equipment.
The Q-doc package for Alfa Laval’s LKH Prime UltraPure comprises performance tests, material certificates, traceability of product wetted parts and the necessary parts and service information.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS
Alfa Laval LKH Prime UltraPure Pump Service Kits - Single Shaft
| Seal type | Description | LKH Prime Ultrapure 10 | LKH Prime Ultrapure 20 |
| Single Shaft seal | Complete Service SiC/SiC EPDM | 8010001223 | 9611927187 |
| Single Shaft seal | Complete Service SiC/SiC FPM | 8010001224 | 9611927188 |
| Single Shaft seal | Complete Service SiC/SiC FEP | 8010001225 | 9611927191 |
All service kits are as standard delivered with Q-doc, including 3.1 certification on product wetted steel parts and declarations of conformity.
Alfa Laval LKH Prime UltraPure Pump Service Kits - Double Mechanical Shaft Seals
| Seal type | Description | LKH Prime Ultrapure 10 | LKH Prime Ultrapure 20 |
| Double Mechanical | Complete Service SiC/SiC EPDM | 8010001226 | 9611927189 |
| Double Mechanical | Complete Service SiC/SiC FPM | 8010001227 | 9611927190 |
| Double Mechanical | Complete Service SiC/SiC FEP | 8010001228 | 9611927192 |
All service kits are as standard delivered with Q-doc, including 3.1 certification on product wetted steel parts and declarations of conformity.
