AL Series Pumps

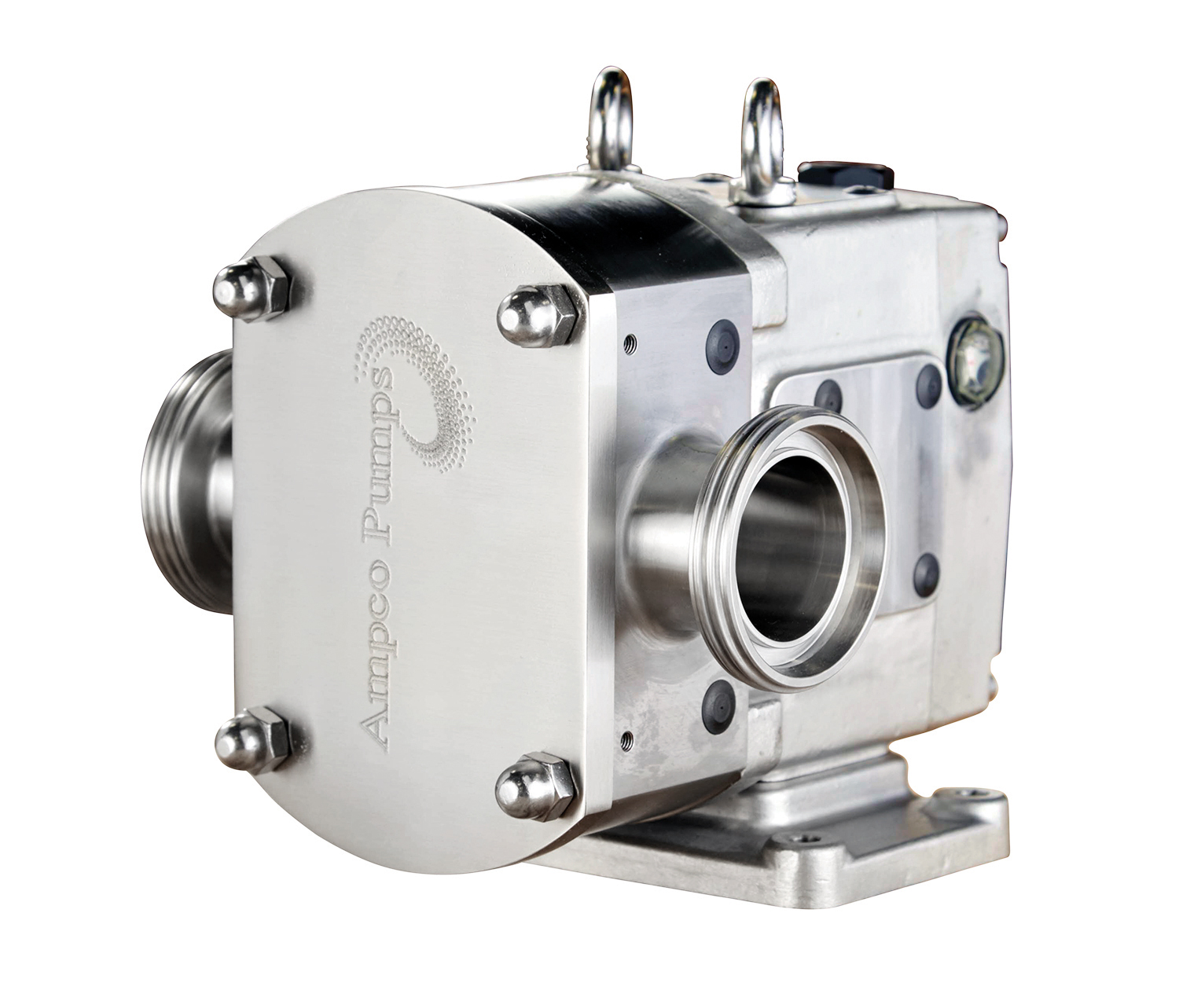

AMPCO AL SERIES ROTARY LOBE PUMPS
Harco offers Ampco’s AL rotary lobe pumps that are well-suited for a variety of applications in the food, dairy, beverage and pharmaceutical industries. There are several optional features in the AL Series line-up providing maximum flexibility for each application.
These AL positive displacement pumps from Ampco accommodate viscosities ranges from 1 to 1,000,000 cP and self-priming capabilities up to 12 feet. And flow rates up to 440 GPM / 100 m3/hr. make this a versatile, yet economical, pump for a variety of processing applications.
Ease of maintenance, CIP performance, uptime reliability, and economical pricing are key characteristics of Ampco’s AL Series of rotary lobe positive displacement pumps. The Ampco AL Series rotary lobe pumps feature a unique front-loading seal design to provide easier cleaning and reduced maintenance time. Rotors and seals can be effortlessly accessed by removing the front cover while connections remain in place.
Seal choices for the Ampco AL pumps include: double mechanical, mechanical seal with flush, double lip seal, triple lip seal, O-ring, and double O-ring. Heating and cooling jackets for temperature sensitive processing are available.
Features:
- 304 Stainless Steel Gearcase Standard on All Models
- Versatile Pump
- Fully CIP-Able
- Ease of Maintenance
- Affordable
- Designed, Manufactured and Assembled in the U.S.A.
Contact Harco for your Ampco AL pump or AL replacement part inquires.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SEAL KITS FOR AMPCO AL SERIES PUMPS
Ampco AL - Single Mechanical Seal Kits
| Description | AL05 | AL10 |
| SINGLE MECHANICAL SEAL KIT (SC/SC W/ EPDM) *(1) | AL05-SGL-SC | AL10-SGL-SC |
| SINGLE MECHANICAL SEAL KIT (SC/SC W/ VITON) *(1) | AL05-SGL-SC-V | AL10-SGL-SC-V |
| SINGLE MECHANICAL SEAL KIT (TC/TC W/ EPDM) *(1) | AL05-SGL-TC | AL10-SGL-TC |
| SINGLE MECHANICAL SEAL KIT (TC/TC W/ VITON) *(1) | AL05-SGL-TC-V | AL10-SGL-TC-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| SINGLE MECHANICAL SEAL KIT (SC/SC W/ EPDM) *(1) | AL15-SGL-SC | AL20-SGL-SC |
| SINGLE MECHANICAL SEAL KIT (SC/SC W/ VITON) *(1) | AL15-SGL-SC-V | AL20-SGL-SC-V |
| SINGLE MECHANICAL SEAL KIT (TC/TC W/ EPDM) *(1) | AL15-SGL-TC | AL20-SGL-TC |
| SINGLE MECHANICAL SEAL KIT (TC/TC W/ VITON) *(1) | AL15-SGL-TC-V | AL20-SGL-TC-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| SINGLE MECHANICAL SEAL KIT (SC/SC W/ EPDM) *(1) | AL30-SGL-SC | AL40-SGL-SC |
| SINGLE MECHANICAL SEAL KIT (SC/SC W/ VITON) *(1) | AL30-SGL-SC-V | AL40-SGL-SC-V |
| SINGLE MECHANICAL SEAL KIT (TC/TC W/ EPDM) *(1) | AL30-SGL-TC | AL40-SGL-TC |
| SINGLE MECHANICAL SEAL KIT (TC/TC W/ VITON) *(1) | AL30-SGL-TC-V | AL40-SGL-TC-V |
Ampco AL - Double Mechanical Seal Kits
| Description | AL05 | AL10 |
| DOUBLE MECHANICAL SEAL KIT (SC/SC-SC/SC W/ EPDM) *(2) | AL05-DBL-SC | AL10-DBL-SC |
| DOUBLE MECHANICAL SEAL KIT (SC/SC-SC/SC W/ VITON) *(2) | AL05-DBL-SC-V | AL10-DBL-SC-V |
| DOUBLE MECHANICAL SEAL KIT (TC/TC-TC/TC W/ EPDM) *(2) | AL05-DBL-TC | AL10-DBL-TC |
| DOUBLE MECHANICAL SEAL KIT (TC/TC-TC/TC W/ VITON) *(2) | AL05-DBL-TC-V | AL10-DBL-TC-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| DOUBLE MECHANICAL SEAL KIT (SC/SC-SC/SC W/ EPDM) *(2) | AL15-DBL-SC | AL20-DBL-SC |
| DOUBLE MECHANICAL SEAL KIT (SC/SC-SC/SC W/ VITON) *(2) | AL15-DBL-SC-V | AL20-DBL-SC-V |
| DOUBLE MECHANICAL SEAL KIT (TC/TC-TC/TC W/ EPDM) *(2) | AL15-DBL-TC | AL20-DBL-TC |
| DOUBLE MECHANICAL SEAL KIT (TC/TC-TC/TC W/ VITON) *(2) | AL15-DBL-TC-V | AL20-DBL-TC-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| DOUBLE MECHANICAL SEAL KIT (SC/SC-SC/SC W/ EPDM) *(2) | AL30-DBL-SC | AL40-DBL-SC |
| DOUBLE MECHANICAL SEAL KIT (SC/SC-SC/SC W/ VITON) *(2) | AL30-DBL-SC-V | AL40-DBL-SC-V |
| DOUBLE MECHANICAL SEAL KIT (TC/TC-TC/TC W/ EPDM) *(2) | AL30-DBL-TC | AL40-DBL-TC |
| DOUBLE MECHANICAL SEAL KIT (TC/TC-TC/TC W/ VITON) *(2) | AL30-DBL-TC-V | AL40-DBL-TC-V |
Ampco AL - Flushed Single Mechanical Seal Kits
| Description | AL05 | AL10 |
| FLUSHED SINGLE MECHANICAL SEAL KIT (SC/SC W/ EPDM) *(3) | AL05-SGLF-SC | AL10-SGLF-SC |
| FLUSHED SINGLE MECHANICAL SEAL KIT (SC/SC W/ VITON) *(3) | AL05-SGLF-SC-V | AL10-SGLF-SC-V |
| FLUSHED SINGLE MECHANICAL SEAL KIT (TC/TC W/ EPDM) *(3) | AL05-SGLF-TC | AL10-SGLF-TC |
| FLUSHED SINGLE MECHANICAL SEAL KIT (TC/TC W/ VITON) *(3) | AL05-SGLF-TC-V | AL10-SGLF-TC-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| FLUSHED SINGLE MECHANICAL SEAL KIT (SC/SC W/ EPDM) *(3) | AL15-SGLF-SC | AL20-SGLF-SC |
| FLUSHED SINGLE MECHANICAL SEAL KIT (SC/SC W/ VITON) *(3) | AL15-SGLF-SC-V | AL20-SGLF-SC-V |
| FLUSHED SINGLE MECHANICAL SEAL KIT (TC/TC W/ EPDM) *(3) | AL15-SGLF-TC | AL20-SGLF-TC |
| FLUSHED SINGLE MECHANICAL SEAL KIT (TC/TC W/ VITON) *(3) | AL15-SGLF-TC-V | AL20-SGLF-TC-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| FLUSHED SINGLE MECHANICAL SEAL KIT (SC/SC W/ EPDM) *(3) | AL30-SGLF-SC | AL40-SGLF-SC |
| FLUSHED SINGLE MECHANICAL SEAL KIT (SC/SC W/ VITON) *(3) | AL30-SGLF-SC-V | AL40-SGLF-SC-V |
| FLUSHED SINGLE MECHANICAL SEAL KIT (TC/TC W/ EPDM) *(3) | AL30-SGLF-TC | AL40-SGLF-TC |
| FLUSHED SINGLE MECHANICAL SEAL KIT (TC/TC W/ VITON) *(3) | AL30-SGLF-TC-V | AL40-SGLF-TC-V |
Ampco AL - Single O-Ring Seal Kits
| Description | AL05 | AL10 |
| SINGLE O-RING SEAL KIT (SS VS. EPDM) *(4) | AL05-OSGL-SS | AL10-OSGL-SS |
| SINGLE O-RING SEAL KIT (SS VS. VITON) *(4) | AL05-OSGL-SS-V | AL10-OSGL-SS-V |
| SINGLE O-RING SEAL KIT (CERAMIC VS. EPDM) *(4) | AL05-OSGL-CER | AL10-OSGL-CER |
| SINGLE O-RING SEAL KIT (CERAMIC VS. VITON) *(4) | AL05-OSGL-CER-V | AL10-OSGL-CER-V |
| SINGLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. EPDM) *(4) | AL05-OSGL-COX | AL10-OSGL-COX |
| SINGLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. VITON) *(4) | AL05-OSGL-COX-V | AL10-OSGL-COX-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| SINGLE O-RING SEAL KIT (SS VS. EPDM) *(4) | AL15-OSGL-SS | AL20-OSGL-SS |
| SINGLE O-RING SEAL KIT (SS VS. VITON) *(4) | AL15-OSGL-SS-V | AL20-OSGL-SS-V |
| SINGLE O-RING SEAL KIT (CERAMIC VS. EPDM) *(4) | AL15-OSGL-CER | AL20-OSGL-CER |
| SINGLE O-RING SEAL KIT (CERAMIC VS. VITON) *(4) | AL15-OSGL-CER-V | AL20-OSGL-CER-V |
| SINGLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. EPDM) *(4) | AL15-OSGL-COX | AL20-OSGL-COX |
| SINGLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. VITON) *(4) | AL15-OSGL-COX-V | AL20-OSGL-COX-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| SINGLE O-RING SEAL KIT (SS VS. EPDM) *(4) | AL30-OSGL-SS | AL40-OSGL-SS |
| SINGLE O-RING SEAL KIT (SS VS. VITON) *(4) | AL30-OSGL-SS-V | AL40-OSGL-SS-V |
| SINGLE O-RING SEAL KIT (CERAMIC VS. EPDM) *(4) | AL30-OSGL-CER | AL40-OSGL-CER |
| SINGLE O-RING SEAL KIT (CERAMIC VS. VITON) *(4) | AL30-OSGL-CER-V | AL40-OSGL-CER-V |
| SINGLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. EPDM) *(4) | AL30-OSGL-COX | AL40-OSGL-COX |
| SINGLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. VITON) *(4) | AL30-OSGL-COX-V | AL40-OSGL-COX-V |
Ampco AL - Double Lip Seal Kits
| Description | AL05 | AL10 |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ EPDM) *(5) | AL05-2LIP-CER | AL10-2LIP-CER |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ VITON) *(5) | AL05-2LIP-CER-V | AL10-2LIP-CER-V |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ EPDM) *(5) | AL05-2LIP-COX | AL10-2LIP-COX |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ VITON) *(5) | AL05-2LIP-COX-V | AL10-2LIP-COX-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ EPDM) *(5) | AL15-2LIP-CER | AL20-2LIP-CER |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ VITON) *(5) | AL15-2LIP-CER-V | AL20-2LIP-CER-V |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ EPDM) *(5) | AL15-2LIP-COX | AL20-2LIP-COX |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ VITON) *(5) | AL15-2LIP-COX-V | AL20-2LIP-COX-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ EPDM) *(5) | AL30-2LIP-CER | AL40-2LIP-CER |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ VITON) *(5) | AL30-2LIP-CER-V | AL40-2LIP-CER-V |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ EPDM) *(5) | AL30-2LIP-COX | AL40-2LIP-COX |
| DOUBLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ VITON) *(5) | AL30-2LIP-COX-V | AL40-2LIP-COX-V |
Ampco AL - Triple Lip Seal Kits
| Description | AL05 | AL10 |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ EPDM) *(6) | AL05-3LIP-CER | AL10-3LIP-CER |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ VITON) *(6) | AL05-3LIP-CER-V | AL10-3LIP-CER-V |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ EPDM) *(6) | AL05-3LIP-COX | AL10-3LIP-COX |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ VITON) *(6) | AL05-3LIP-COX-V | AL10-3LIP-COX-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ EPDM) *(6) | AL15-3LIP-CER | AL20-3LIP-CER |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ VITON) *(6) | AL15-3LIP-CER-V | AL20-3LIP-CER-V |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ EPDM) *(6) | AL15-3LIP-COX | AL20-3LIP-COX |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ VITON) *(6) | AL15-3LIP-COX-V | AL20-3LIP-COX-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ EPDM) *(6) | AL30-3LIP-CER | AL40-3LIP-CER |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC W/ VITON) *(6) | AL30-3LIP-CER-V | AL40-3LIP-CER-V |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ EPDM) *(6) | AL30-3LIP-COX | AL40-3LIP-COX |
| TRIPLE LIP SEAL KIT (TEFLON VS. CERAMIC COATED [COX] W/ VITON) *(6) | AL30-3LIP-COX-V | AL40-3LIP-COX-V |
Ampco AL - Double O-Ring Seal Kits
| Description | AL05 | AL10 |
| DOUBLE O-RING SEAL KIT (SS VS. EPDM) *(7) | AL05-ODBL-SS | AL10-ODBL-SS |
| DOUBLE O-RING SEAL KIT (SS VS. VITON) *(7) | AL05-ODBL-SS-V | AL10-ODBL-SS-V |
| DOUBLE O-RING SEAL KIT (CERAMIC VS. EPDM) *(7) | AL05-ODBL-CER | AL10-ODBL-CER |
| DOUBLE O-RING SEAL KIT (CERAMIC VS. VITON) *(7) | AL05-ODBL-CER-V | AL10-ODBL-CER-V |
| DOUBLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. EPDM) *(7) | AL05-ODBL-COX | AL10-ODBL-COX |
| DOUBLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. VITON) *(7) | AL05-ODBL-COX-V | AL10-ODBL-COX-V |
| Description | AL15 / AL20 | AL22 / AL25 |
| DOUBLE O-RING SEAL KIT (SS VS. EPDM) *(7) | AL15-ODBL-SS | AL20-ODBL-SS |
| DOUBLE O-RING SEAL KIT (SS VS. VITON) *(7) | AL15-ODBL-SS-V | AL20-ODBL-SS-V |
| DOUBLE O-RING SEAL KIT (CERAMIC VS. EPDM) *(7) | AL15-ODBL-CER | AL20-ODBL-CER |
| DOUBLE O-RING SEAL KIT (CERAMIC VS. VITON) *(7) | AL15-ODBL-CER-V | AL20-ODBL-CER-V |
| DOUBLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. EPDM) *(7) | AL15-ODBL-COX | AL20-ODBL-COX |
| DOUBLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. VITON) *(7) | AL15-ODBL-COX-V | AL20-ODBL-COX-V |
| Description | AL33 / AL34 | AL44 / AL46 |
| DOUBLE O-RING SEAL KIT (SS VS. EPDM) *(7) | AL30-ODBL-SS | AL40-ODBL-SS |
| DOUBLE O-RING SEAL KIT (SS VS. VITON) *(7) | AL30-ODBL-SS-V | AL40-ODBL-SS-V |
| DOUBLE O-RING SEAL KIT (CERAMIC VS. EPDM) *(7) | AL30-ODBL-CER | AL40-ODBL-CER |
| DOUBLE O-RING SEAL KIT (CERAMIC VS. VITON) *(7) | AL30-ODBL-CER-V | AL40-ODBL-CER-V |
| DOUBLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. EPDM) *(7) | AL30-ODBL-COX | AL40-ODBL-COX |
| DOUBLE O-RING SEAL KIT (CERAMIC COATED [COX] VS. VITON) *(7) | AL30-ODBL-COX-V | AL40-ODBL-COX-V |
O-RING KITS FOR AMPCO AL SERIES PUMPS
Ampco AL - Single O-Ring Kits
| Description | AL05 | AL10 |
| SINGLE O-RING KIT – EPDM | AL05-ORSGL-EP | AL10-ORSGL-EP |
| SINGLE O-RING KIT – VITON | AL05-ORSGL-VI | AL10-ORSGL-VI |
| Description | AL15 / AL20 | AL22 / AL25 |
| SINGLE O-RING KIT – EPDM | AL15-ORSGL-EP | AL20-ORSGL-EP |
| SINGLE O-RING KIT – VITON | AL15-ORSGL-VI | AL20-ORSGL-VI |
| Description | AL33 / AL34 | AL44 / AL46 |
| SINGLE O-RING KIT – EPDM | AL30-ORSGL-EP | AL40-ORSGL-EP |
| SINGLE O-RING KIT – VITON | AL30-ORSGL-VI | AL40-ORSGL-VI |
Ampco AL - Double Mechanical Seal Kits
| Description | AL05 | AL10 |
| DOUBLE O-RING KIT – EPDM | AL05-ORDBL-EP | AL10-ORDBL-EP |
| DOUBLE O-RING KIT – EPDM | AL05-ORDBL-VI | AL10-ORDBL-VI |
| Description | AL15 / AL20 | AL22 / AL25 |
| DOUBLE O-RING KIT – EPDM | AL15-ORDBL-EP | AL20-ORDBL-EP |
| DOUBLE O-RING KIT – EPDM | AL15-ORDBL-VI | AL20-ORDBL-VI |
| Description | AL33 / AL34 | AL44 / AL46 |
| DOUBLE O-RING KIT – EPDM | AL30-ORDBL-EP | AL40-ORDBL-EP |
| DOUBLE O-RING KIT – EPDM | AL30-ORDBL-VI | AL40-ORDBL-VI |
