G&H/GHPD Pumps

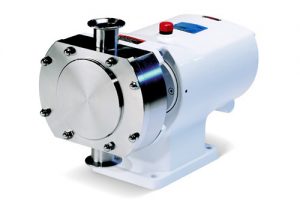

G&H / GHPD ROTARY LOBE PUMPS
These G&H / GHPD Rotary Lobe Pumps are no longer manufactured by Alfa Laval. However, spare parts and service materials may still be available. Contact Harco for help with repairs, maintenance, or replacement.
For more information or contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS
GHPD HyClean Single Mechanical Seals
| Seal Type | Description Rotary Seal/Stationary Seal Ring | GHPD 322 -332 | GHPD 422 -432 | GHPD 522 -532 | GHPD 622 -632 | GHPD 722 -732 | GHPD8 22 -832 |
| Single Mechanical | Stainless Steel/Carbon O-Rings -NBR | 9630856395 | 9630856419 | 9630856443 | 9630856467 | 9630856491 | 9630856515 |
| Single Mechanical | Stainless Steel/Carbon O-Rings -EPDM | 9630856396 | 9630856420 | 9630856444 | 963085668 | 9630856492 | 9630856516 |
| Single Mechanical | Stainless Steel/Carbon O-Rings -FPM | 9630856397 | 9630856421 | 9630856445 | 963085669 | 9630856493 | 9630856517 |
| Single Mechanical | Silicon Carbide/Carbon O-Rings -NBR | 9630856398 | 9630856422 | 9630856446 | 963085670 | 9630856494 | 9630856518 |
| Single Mechanical | Silicon Carbide/Carbon O-Rings -EPDM | 9630856399 | 9630856423 | 9630856447 | 963085671 | 9630856495 | 9630856519 |
| Single Mechanical | Silicon Carbide/Carbon O-Rings -FPM | 9630856400 | 9630856424 | 9630856448 | 963085672 | 9630856496 | 9630856520 |
| Single Mechanical | Silicon Carbide/Silicon Carbide O-Rings -NBR | 9630856401 | 9630856425 | 9630856449 | 963085673 | 9630856497 | 9630856521 |
| Single Mechanical | Silicon Carbide/Silicon Carbide O-Rings -EPDM | 9630856402 | 9630856426 | 9630856450 | 963085674 | 9630856498 | 9630856522 |
| Single Mechanical | Silicon Carbide/Silicon Carbide O-Rings -FPM | 9630856403 | 9630856427 | 9630856451 | 963085675 | 9630856499 | 9630856523 |
GHPD HyClean Service Kits
| Seal Type | Description Rotary Seal/Stationary Seal Ring | GHPD 322 -332 | GHPD 422 -432 | GHPD 522 -532 | GHPD 622 -632 | GHPD 722 -732 | GHPD8 22 -832 |
| Single Mechanical | Stainless Steel/Carbon O-Rings -NBR | 9630856395 | 9630856419 | 9630856443 | 9630856467 | 9630856491 | 9630856515 |
| Single Mechanical | Stainless Steel/Carbon O-Rings -EPDM | 9630856396 | 9630856420 | 9630856444 | 9630856468 | 9630856492 | 9630856516 |
| Single Mechanical | Stainless Steel/Carbon O-Rings -FPM | 9630856397 | 9630856421 | 9630856445 | 9630856469 | 9630856493 | 9630856517 |
| Single Mechanical | Silicon Carbide/Carbon O-Rings -NBR | 9630856398 | 9630856422 | 9630856446 | 9630856470 | 9630856494 | 9630856518 |
| Single Mechanical | Silicon Carbide/Carbon O-Rings -EPDM | 9630856399 | 9630856423 | 9630856447 | 9630856471 | 9630856495 | 9630856519 |
| Single Mechanical | Silicon Carbide/Carbon O-Rings -FPM | 9630856400 | 9630856424 | 9630856448 | 9630856472 | 9630856496 | 9630856520 |
| Single Mechanical | Silicon Carbide/Silicon Carbide O-Rings -NBR | 9630856401 | 9630856425 | 9630856449 | 9630856473 | 9630856497 | 9630856521 |
| Single Mechanical | Silicon Carbide/Silicon Carbide O-Rings -EPDM | 9630856402 | 9630856426 | 9630856450 | 9630856474 | 9630856498 | 9630856522 |
| Single Mechanical | Silicon Carbide/Silicon Carbide O-Rings -FPM | 9630856403 | 9630856427 | 9630856451 | 9630856475 | 9630856499 | 9630856523 |
Each kit comprises of: 1 off Cover/Spline Sealing Kit and 2 off complete Mechanical Seals for one pump.
