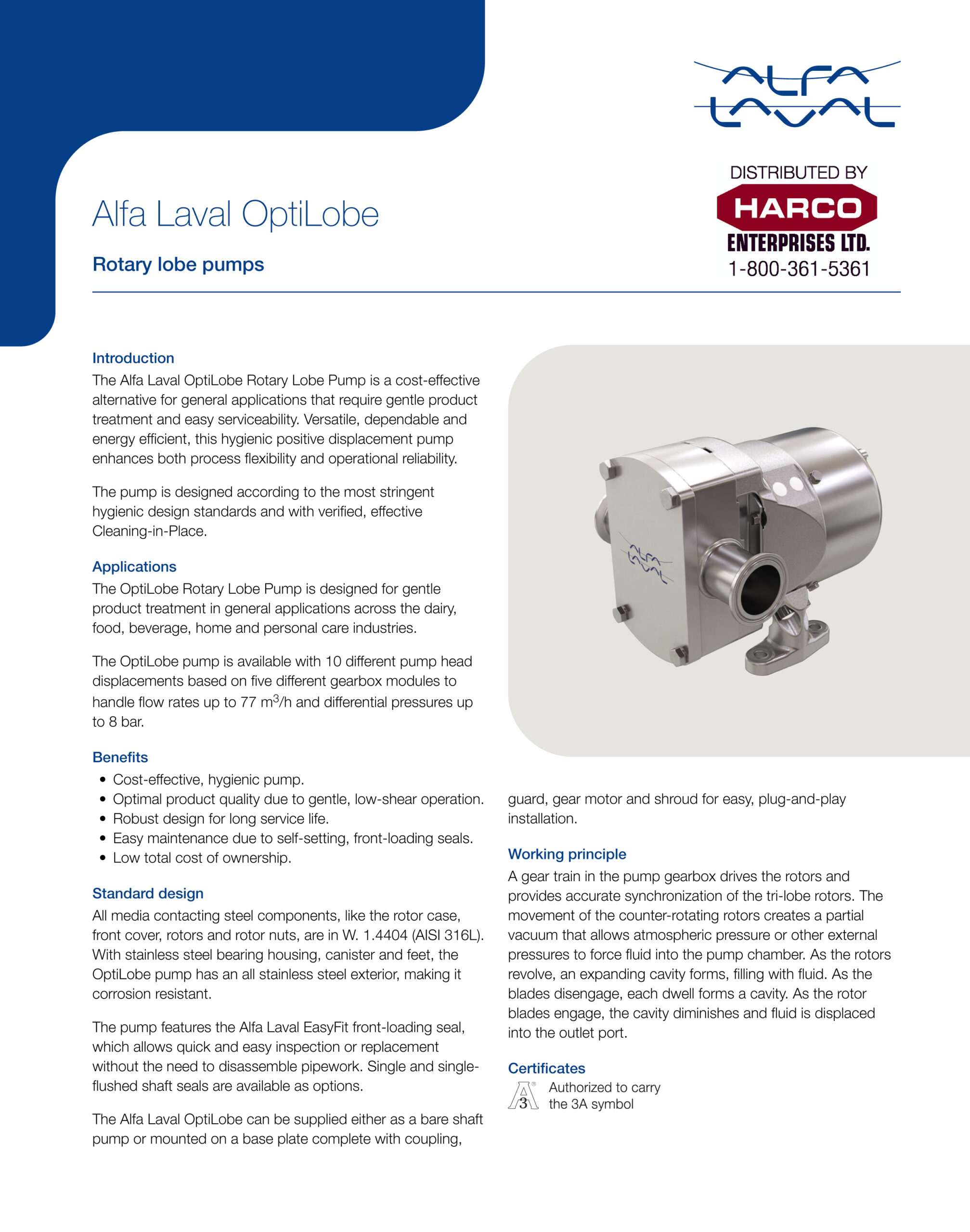

ALFA LAVAL OPTI-LOBE PUMPS
Harco offers Alfa Laval Opti-Lobe Pumps, an optimized rotary lobe pump that is known for its simple installation, operation and maintenance. And its universal mounting with inlet and outlet ports in a vertical or horizontal position makes installation straightforward.
Operation is just as easy and reliable thanks to the robust gearbox construction. Fully interchangeable front-loading seals provides fast access for an inspection or a replacement, without having to disassemble the pipe work.
Alfa Laval’s Opti-Lobe rotary lobe pumps offer reliable fluid transfer and gentle handling of the product, along with low pulsation, shear and noise characteristics. These hygienic positive displacement pumps from Alfa Laval are suitable for most general applications and Cleaning-in-Place.
Contact Harco for your Alfa Laval Opti-Lobe Pump or Opti-Lobe replacement parts inquires.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS
Alfa Laval Opti-Lobe Pump - Shaft Seals
| Description | Opti-Lobe 12/13 | Opti-Lobe 22/23 | Opti-Lobe 32/33 | Opti-Lobe 42/43 | Opti-Lobe 52/53 |
| Carbon/Stainless Steel, EPDM | 9630672404 | 9630864754 | 9630864760 | 9630864766 | 9630672410 |
| Carbon/Stainless Steel, FPM | 9630672407 | 9630864755 | 9630864761 | 9630864767 | 9630672413 |
| Carbon/Silicon Carbide, EPDM | 9630672406 | 9630864758 | 9630864764 | 9630864770 | 9630672412 |
| Carbon/Silicon Carbide, FPM | 9630672409 | 9630864759 | 9630864765 | 9630864771 | 9630672415 |
| Silicon Carbide/Silicon Carbide, EPDM | 9630672405 | 9630864756 | 9630864762 | 9630864768 | 9630672411 |
| Silicon Carbide/Silicon Carbide, FPM | 9630672408 | 9630864757 | 9630864763 | 9630864769 | 9630672414 |
| Each kit for pump comprises of: | |||
| 1 off Cover / Spline Sealing Kit | 2 off Rotary Seal Drive Rings (104) | ||
| 2 off wave springs (101) | 2 off Rotary Seal Rings (105) | ||
| 2 off Rotary Seal O-rings (102) | 2 off Stationary Seal Drive Rings | ||
| 2 off ’L’ Cup Seals (103) | 2 off Rotary Seal O-rings (102) | ||
| 2 off Stationary Seal Rings (107) | |||
Alfa Laval Opti-Lobe Pump - Cover/Spline Sealing Kit
| Description | Opti-Lobe 12/13 | Opti-Lobe 22/23 | Opti-Lobe 32/33 | Opti-Lobe 42/43 | Opti-Lobe 52/53 |
| Cover/Spline Sealing Kit, EPDM | 9630672400 | 9630864748 | 9630864750 | 9630864752 | 9630672402 |
| Cover/Spline Sealing Kit, FPM | 9630672401 | 9630864749 | 9630864751 | 9630864753 | 9630672403 |
Includes: rotor case cover O-ring + 2 pcs of: rotor O-rings for shaft end and rotor O-rings for nut end
