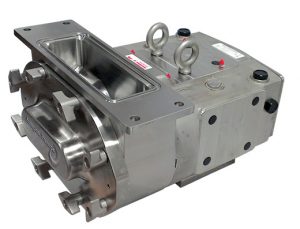

AMPCO ZP1 SERIES POSITIVE DISPLACEMENT PUMPS
Harco offers the Ampco ZP1 Series Positive Displacement Pumps that stand out as an industry workhorse, boasting a proven design that makes them a reliable choice. With a total of 9 models available, the ZP1 circumferential piston pumps by Ampco provide a straightforward solution for various tasks. These pumps have garnered a substantial installed base, proving their efficacy in both sanitary and non-sanitary applications.
Featuring seal modifications such as the PTFE double-lip seal, Ampco’s ZP1 Series Positive Displacement Pumps are specifically engineered to tackle the most demanding applications. Transitioning seamlessly between sanitary industrial and chemical uses, they find common ground in oil, gas, and fracking industries. Harco proudly presents the Ampco ZP1 Series Pumps as a resilient and adaptable solution, resistant to chemical wear, and compliant with 3A sanitary standards.
Features of the Ampco ZP1 Series Circumferential Piston Pump
- 304 Stainless Steel Gearcase
- Alloy 88 Non-Galling Rotors
- Stainless Steel Bearing Retainers
- 17-4ph Shafts – more than 3 times the yield strength of 316
- Helical Gears
- 4-Way Mounting
- Multiple Threaded Grease Zerks
- Gasketed Stainless Steel Clean-Out Plugs
- Stainless Steel Splash Plate
All Ampco ZP1 Series features and benefits are standard to the entire ZP lineup.
Performance Overview of the Ampco ZP1 Series Pumps
- Models: 9
- Max Discharge Pressure: 225 PSI / 15.5 BAR
- Max Flow Rate: 452 GPM / 103 m3/hr
- Max Viscosity: 1,000,000 cP
- Seal Specifications: 5 Seal Options
Contact Harco for your Ampco ZP1 pump or ZP1 replacement part inquires.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS FOR ZP1
Ampco ZP1 Single and Double O-ring Seal Kits
| Seal type | Materials | Description | ZP1 006/015/018 | ZP1 030/034/040 | ZP1 060/130 |
| Single O-ring seal | Buna | Elastomers Only | P1GX015000-N | P1GX030000-N | P1GX060000-N |
| Single O-ring seal | 17-4 SS/Buna | Sleeves/Elastomers | P1GS01500S-N | P1GS03000S-N | P1GS06000S-N |
| Single O-ring seal | Zirconia/Buna | Sleeves/Elastomers | P1GS01500Z-N | P1GS03000Z-N | P1GS06000Z-N |
| Single O-ring seal | EPDM | Elastomers Only | P1GX015000-E | P1GX030000-E | P1GX060000-E |
| Single O-ring seal | 17-4 SS/EPDM | Sleeves/Elastomers | P1GS01500S-E | P1GS03000S-E | P1GS06000S-E |
| Single O-ring seal | Zirconia/EPDM | Sleeves/Elastomers | P1GS01500Z-E | P1GS03000Z-E | P1GS06000Z-E |
| Single O-ring seal | Viton | Elastomers Only | P1GX015000-V | P1GX030000-V | P1GX060000-V |
| Single O-ring seal | 17-4 SS/Viton | Sleeves/Elastomers | P1GS01500S-V | P1GS03000S-V | P1GS06000S-V |
| Single O-ring seal | Zirconia/Viton | Sleeves/Elastomers | P1GS01500Z-V | P1GS03000Z-V | P1GS06000Z-V |
| Double O-ring seal | Buna | Elastomers Only | P1GX015200-N | P1GX030200-N | P1GX060200-N |
| Double O-ring seal | 17-4 SS/Buna | Sleeves/Elastomers | P1GS01520S-N | P1GS03020S-N | P1GS06020S-N |
| Double O-ring seal | Zirconia/Buna | Sleeves/Elastomers | P1GS01520Z-N | P1GS03020Z-N | P1GS06020Z-N |
| Double O-ring seal | EPDM | Elastomers Only | P1GX015200-E | P1GX030200-E | P1GX060200-E |
| Double O-ring seal | 17-4 SS/EPDM | Sleeves/Elastomers | P1GS01520S-E | P1GS03020S-E | P1GS06020S-E |
| Double O-ring seal | Zirconia/EPDM | Sleeves/Elastomers | P1GS01520Z-E | P1GS03020Z-E | P1GS06020Z-E |
| Double O-ring seal | Viton | Elastomers Only | P1GX015200-V | P1GX030200-V | P1GX060200-V |
| Double O-ring seal | 17-4 SS/Viton | Sleeves/Elastomers | P1GS01520S-V | P1GS03020S-V | P1GS06020S-V |
| Double O-ring seal | Zirconia/Viton | Sleeves/Elastomers | P1GS01520Z-V | P1GS03020Z-V | P1GS06020Z-V |
Mechanical seal replacement kits include: seal faces and O-rings for both shafts and rotors and cover O-ring
| Seal type | Materials | Description | ZP1 220 | ZP1 320 |
| Single O-ring seal | Buna | Elastomers Only | P1GX220000-N | N/A |
| Single O-ring seal | 17-4 SS/Buna | Sleeves/Elastomers | P1GS22000S-N | N/A |
| Single O-ring seal | Zirconia/Buna | Sleeves/Elastomers | P1GS22000Z-N | N/A |
| Single O-ring seal | EPDM | Elastomers Only | P1GX220000-E | N/A |
| Single O-ring seal | 17-4 SS/EPDM | Sleeves/Elastomers | P1GS22000S-E | N/A |
| Single O-ring seal | Zirconia/EPDM | Sleeves/Elastomers | P1GS22000Z-E | N/A |
| Single O-ring seal | Viton | Elastomers Only | P1GX220000-V | N/A |
| Single O-ring seal | 17-4 SS/Viton | Sleeves/Elastomers | P1GS22000S-V | N/A |
| Single O-ring seal | Zirconia/Viton | Sleeves/Elastomers | P1GS22000Z-V | N/A |
| Double O-ring seal | Buna | Elastomers Only | P1GX220200-N | N/A |
| Double O-ring seal | 17-4 SS/Buna | Sleeves/Elastomers | P1GS22020S-N | N/A |
| Double O-ring seal | Zirconia/Buna | Sleeves/Elastomers | P1GS22020Z-N | N/A |
| Double O-ring seal | EPDM | Elastomers Only | P1GX220200-E | N/A |
| Double O-ring seal | 17-4 SS/EPDM | Sleeves/Elastomers | P1GS22020S-E | N/A |
| Double O-ring seal | Zirconia/EPDM | Sleeves/Elastomers | P1GS22020Z-E | N/A |
| Double O-ring seal | Viton | Elastomers Only | P1GX220200-V | N/A |
| Double O-ring seal | 17-4 SS/Viton | Sleeves/Elastomers | P1GS22020S-V | N/A |
| Double O-ring seal | Zirconia/Viton | Sleeves/Elastomers | P1GS22020Z-V | N/A |
Mechanical seal replacement kits include: seal faces and O-rings for both shafts and rotors and cover O-ring
Ampco ZP1 Mechanical Seal Kits
| Seal type | Materials | Description | ZP1 006/015/018 | ZP1 030/034/040 | ZP1 060/130 |
| Single Mechanical | Buna | Elastomers Only | P1GX015000-N | P1GX030000-N | P1GX060000-N |
| Single Mechanical | SC / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS015000-N | P1GS030000-N | P1GS060000-N |
| Single Mechanical | Ce / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS015020-N | P1GS030020-N | P1GS060020-N |
| Single Mechanical | Ce / Ce / Buna | Seal Faces / Springs / Elastomers | P1GS015030-N | P1GS030030-N | P1GS060030-N |
| Single Mechanical | SC / SC / Buna | Seal Faces / Springs / Elastomers | P1GS015010-N | P1GS030010-N | P1GS060010-N |
| Single Mechanical | EPDM | Elastomers Only | P1GX015000-E | P1GX030000-E | P1GX060000-E |
| Single Mechanical | SC / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS015000-E | P1GS030000-E | P1GS060000-E |
| Single Mechanical | Ce / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS015020-E | P1GS030020-E | P1GS060020-E |
| Single Mechanical | Ce / Ce / EPDM | Seal Faces / Springs / Elastomers | P1GS015030-E | P1GS030030-E | P1GS060030-E |
| Single Mechanical | SC / SC / EPDM | Seal Faces / Springs / Elastomers | P1GS015010-E | P1GS030010-E | P1GS060010-E |
| Single Mechanical | Viton | Elastomers Only | P1GX015000-V | P1GX030000-V | P1GX060000-V |
| Single Mechanical | SC / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS015000-V | P1GS030000-V | P1GS060000-V |
| Single Mechanical | Ce / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS015020-V | P1GS030020-V | P1GS060020-V |
| Single Mechanical | Ce / Ce / Viton | Seal Faces / Springs / Elastomers | P1GS015030-V | P1GS030030-V | P1GS060030-V |
| Single Mechanical | SC / SC / Viton | Seal Faces / Springs / Elastomers | P1GS015010-V | P1GS030010-V | P1GS060010-V |
| Double Mechanical | Buna | Elastomers Only | P1GX015200-N | P1GX030200-N | P1GX060200-N |
| Double Mechanical | SC / Ca / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS015200-N | P1GS030200-N | P1GS060200-N |
| Double Mechanical | Ce / Ca / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS015220-N | P1GS030220-N | P1GS060220-N |
| Double Mechanical | Ce / Ce / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS015230-N | P1GS030230-N | P1GS060230-N |
| Double Mechanical | SC / SC / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS015210-N | P1GS030210-N | P1GS060210-N |
| Double Mechanical | EPDM | Elastomers Only | P1GX015200-E | P1GX030200-E | P1GX060200-E |
| Double Mechanical | SC / Ca / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS015200-E | P1GS030200-E | P1GS060200-E |
| Double Mechanical | Ce / Ca / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS015220-E | P1GS030220-E | P1GS060220-E |
| Double Mechanical | Ce / Ce / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS015230-E | P1GS030230-E | P1GS060230-E |
| Double Mechanical | SC / SC / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS015210-E | P1GS030210-E | P1GS060210-E |
| Double Mechanical | Viton | Elastomers Only | P1GX015200-V | P1GX030200-V | P1GX060200-V |
| Double Mechanical | SC / Ca / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS015200-V | P1GS030200-V | P1GS060200-V |
| Double Mechanical | Ce / Ca / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS015220-V | P1GS030220-V | P1GS060220-V |
| Double Mechanical | Ce / Ce / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS015230-V | P1GS030230-V | P1GS060230-V |
| Double Mechanical | SC / SC / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS015210-V | P1GS030210-V | P1GS060210-V |
Mechanical seal replacement kits include: seal faces and O-rings for both shafts and rotors and cover O-ring
| Seal type | Materials | Description | ZP1 220 | ZP1 320 |
| Single Mechanical | Buna | Elastomers Only | P1GX220000-N | P1GX320000-N |
| Single Mechanical | SC / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS220000-N | P1GS320000-N |
| Single Mechanical | Ce / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS220020-N | N/A |
| Single Mechanical | Ce / Ce / Buna | Seal Faces / Springs / Elastomers | P1GS220030-N | N/A |
| Single Mechanical | SC / SC / Buna | Seal Faces / Springs / Elastomers | P1GS220010-N | P1GS320010-N |
| Single Mechanical | EPDM | Elastomers Only | P1GX220000-E | P1GX320000-E |
| Single Mechanical | SC / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS220000-E | P1GS320000-E |
| Single Mechanical | Ce / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS220020-E | N/A |
| Single Mechanical | Ce / Ce / EPDM | Seal Faces / Springs / Elastomers | P1GS220030-E | N/A |
| Single Mechanical | SC / SC / EPDM | Seal Faces / Springs / Elastomers | P1GS220010-E | P1GS320010-E |
| Single Mechanical | Viton | Elastomers Only | P1GX220000-V | P1GX320000-V |
| Single Mechanical | SC / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS220000-V | P1GS320000-V |
| Single Mechanical | Ce / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS220020-V | N/A |
| Single Mechanical | Ce / Ce / Viton | Seal Faces / Springs / Elastomers | P1GS220030-V | N/A |
| Single Mechanical | SC / SC / Viton | Seal Faces / Springs / Elastomers | P1GS220010-V | P1GS320010-V |
| Double Mechanical | Buna | Elastomers Only | P1GX220200-N | P1GX320200-N |
| Double Mechanical | SC / Ca / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS220200-N | P1GS320200-N |
| Double Mechanical | Ce / Ca / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS220220-N | N/A |
| Double Mechanical | Ce / Ce / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS220230-N | N/A |
| Double Mechanical | SC / SC / Ca / Buna | Seal Faces / Springs / Elastomers | P1GS220210-N | P1GS320210-N |
| Double Mechanical | EPDM | Elastomers Only | P1GX220200-E | P1GX320200-E |
| Double Mechanical | SC / Ca / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS220200-E | P1GS320200-E |
| Double Mechanical | Ce / Ca / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS220220-E | N/A |
| Double Mechanical | Ce / Ce / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS220230-E | N/A |
| Double Mechanical | SC / SC / Ca / EPDM | Seal Faces / Springs / Elastomers | P1GS220210-E | P1GS320210-E |
| Double Mechanical | Viton | Elastomers Only | P1GX220200-V | P1GX320200-V |
| Double Mechanical | SC / Ca / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS220200-V | P1GS320200-V |
| Double Mechanical | Ce / Ca / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS220220-V | N/A |
| Double Mechanical | Ce / Ce / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS220230-V | N/A |
| Double Mechanical | SC / SC / Ca / Viton | Seal Faces / Springs / Elastomers | P1GS220210-V | P1GS320210-V |
Mechanical seal replacement kits include: seal faces and O-rings for both shafts and rotors and cover O-ring
