8692 Electro-Pneumatic Positioner

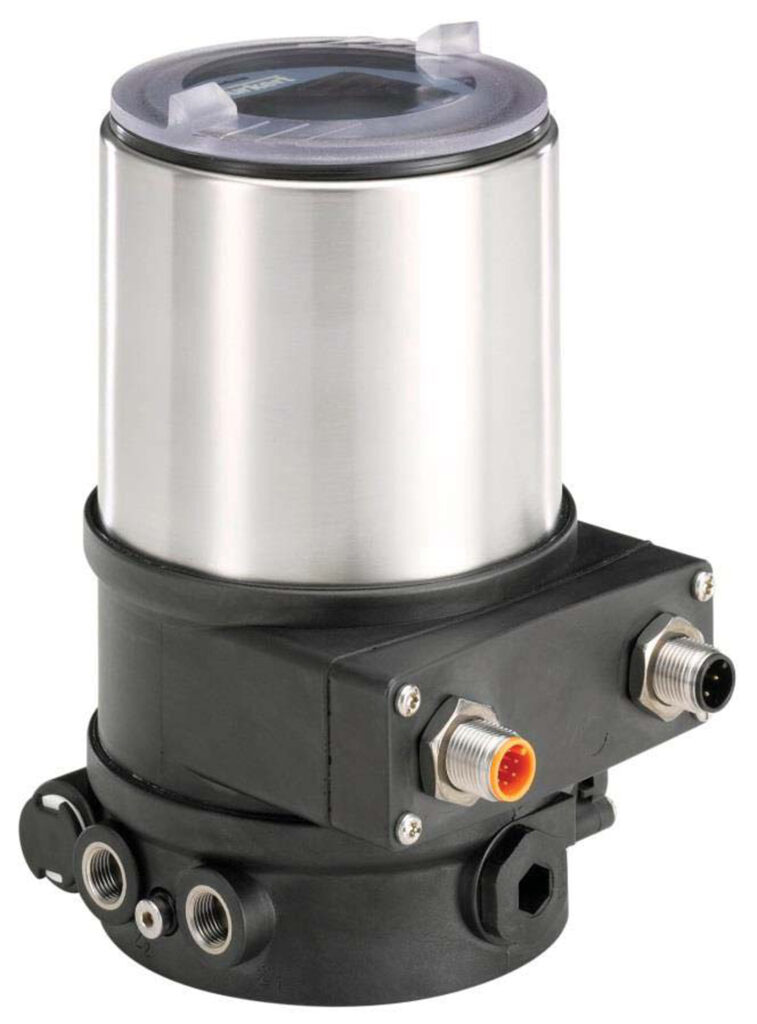

BÜRKERT TYPE 8692 ELECTRO-PNEUMATIC POSITIONER
Digital electro-pneumatic positioner for integrated mounting on process control valves
Harco offers the Bürkert Type 8692 Electro-Pneumatic Positioner, a high-performance solution for decentralized automation of ELEMENT Type 21xx pneumatic process valves. Specifically, it features a contact-free analogue sensor for valve position registration, which automatically detects and stores end positions via the Teach function during start-up. In addition, the integrated pilot valve manages both single and double-acting actuators, with optional interfaces including EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1, and büS (based on CANopen).

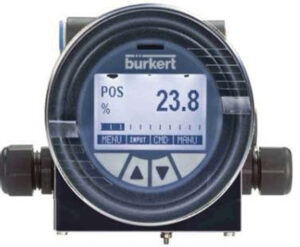

Moreover, the Bürkert Type 8692 is engineered with internal control air routing, eliminating the need for external tubing. Its bright LED indicators provide clear, real-time device status even in harsh ambient conditions, while electrical feedback ensures precise control.
Additionally, with an easy-to-clean stainless steel housing, the Bürkert Type 8692 provides proven IP protection and uses chemically resistant materials—making it ideal for hygienic processing in food, beverage, and pharmaceutical industries. For wash-down applications, its IP rating is further enhanced by internal positive pressure. When combined with Bürkert ELEMENT actuators, the system enables spring chamber aeration to prevent contamination from external environments.
Features:
- Compact and robust stainless steel design
- Easy start-up with automatic X-Tune function
- Contact-free position sensor
- Integrated pilot air duct with spring chamber aeration
- EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1 or Bürkert system bus (büS)
Contact Harco today to learn how the Bürkert Type 8692 can improve precision and hygiene in your process automation.
