Tri-Clover® 762 Series Valves

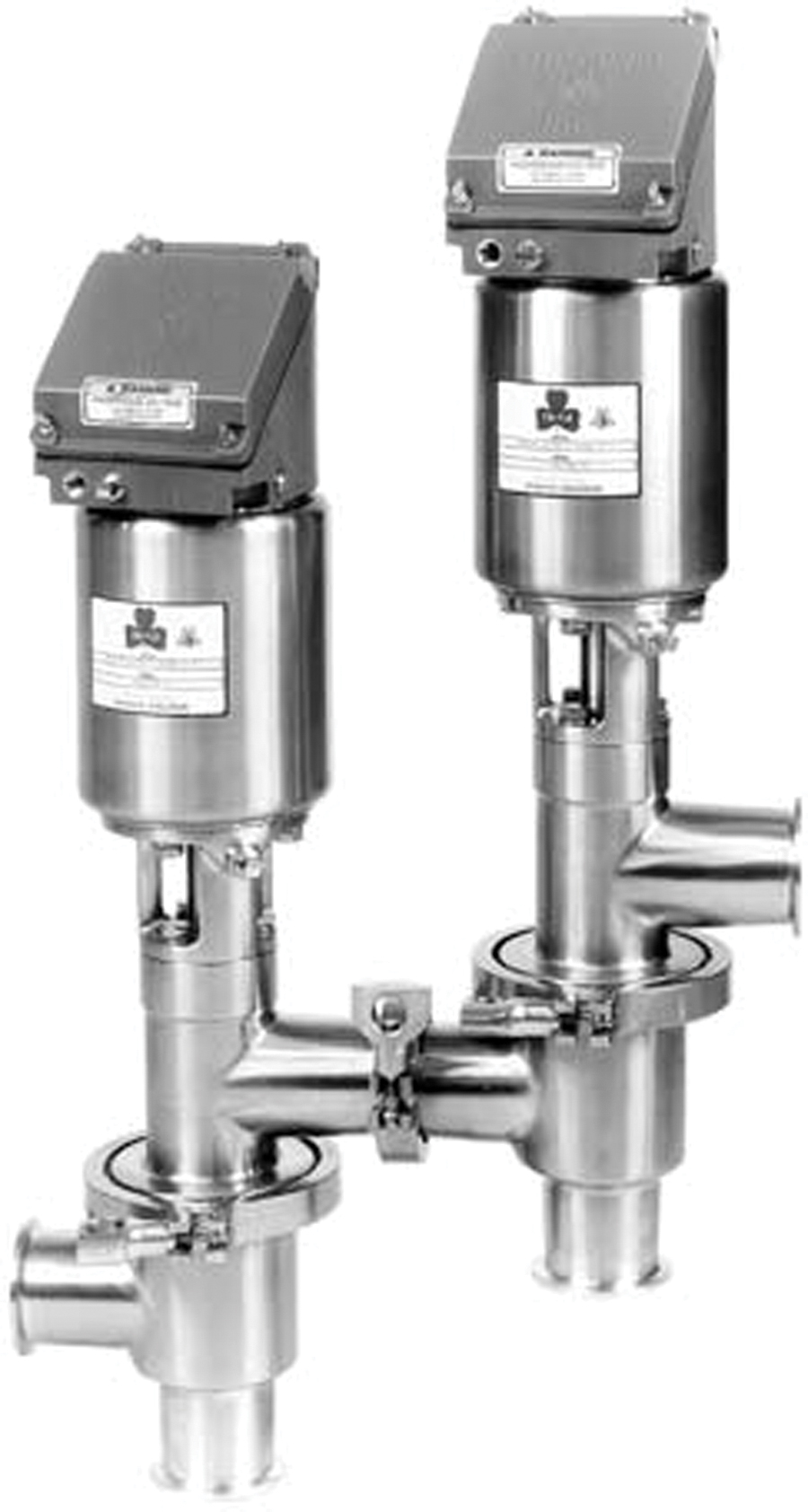

ALFA LAVAL TRI-CLOVER® 762 FLO-DIVERSION VALVES
Harco proudly supplies the Alfa Laval Tri-Clover® 762 Flo-Diversion Valves, expertly engineered for HTST (High Temperature Short Time) systems in the dairy, beverage, and food industries. Whether you’re protecting product integrity or meeting strict sanitary requirements, these valves are designed to perform with unmatched reliability.
Key Features and Benefits
- Available in Standard and Reverse-Acting Models
The standard valve closes with the flow, while the Reverse-Acting model closes against it—featuring a patented design that prevents hydraulic shock and protects internal components. - Built for Sanitary Applications
Constructed with 316L stainless steel and FDA/3A-compliant PTFE stem plugs, these valves meet all PMO and 3A standards. The Reverse-Acting model features tangential, fully drainable bodies, supporting CIP (Clean-in-Place) processes and preventing bacterial growth. - Smart Control Solutions
Equipped with NEMA 4 microswitch control housings, these valves support solenoid installation directly on the actuator, eliminating the need for remote panel-mounted solenoids or quick exhausts.
Enhanced Design, Same Trusted Performance
Expanding on this trusted platform, the Alfa Laval Tri-Clover® 762-227 Flo-Diversion Valve, an evolution of the popular 761 Series, incorporates the same user-friendly design and sanitary features. With polished ID/OD 316L stainless steel wetted parts and quick connect Tri-Clamp® ports, it supports easy installation and maintenance. Available in 1.5″-3″ and 2″-4″ tube OD sizes, these valves offer versatile installation options, including left-hand or right-hand tangential body configurations, allowing the actuator to be mounted on either end to match various process line layouts.
Your Source for Alfa Laval Valves and Parts
Harco is your trusted partner for Alfa Laval Tri-Clover® 762 Series valves and components. Whether you’re upgrading an existing line or building a new system, we provide the precision-engineered solutions you need to ensure consistent, high-quality processing.
Contact us today to enhance your fluid handling systems with reliable, high-performance sanitary valves.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
