Tri-Clover® 700 Series Valves

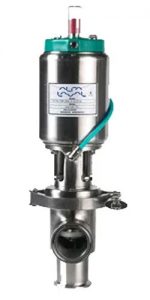

ALFA LAVAL TRI-CLOVER® 700 SERIES VALVES

Harco offers the Alfa Laval Tri-Clover® 700 Series Valves, a range of air-operated single-seat valves that provide years of reliable performance, and have been installed for decades in various food, dairy and beverage plants across the U.S.

Alfa Laval’s Tri-Clover® 700 Series Valves can be configured with either a short- or long-stroke actuator. The Alfa Laval Tri-Clover® 761 valve has a flexible sanitary design, allowing it to be used in a wide range of applications, as a stop valve with two or three ports or as divert valve with three to five ports.

The Tri-Clover® 700 Series valves from Alfa Laval feature a durable and dependable design with rugged plastic stem bushings, which eliminate metal-to-metal galling. In addition, the stem is threaded to the actuator shaft, eliminating the coupling between the stem and actuator, thereby ensuring proper alignment. Bushings at each end of the cylinder support stem also ensure perfect alignment. Finally, each valve features a heavy-duty bonnet and body ferrule design that will stand up to years of pounding from hydraulic shock.

Alfa Laval’s Tri-Clover® 700 Series valves are available in both long and short actuators, including a wide selection of shut-off and divert valves. Sizes range from 1″(25 mm) to 4″(102 mm), in normally opened or closed positions. Alfa Laval Tri-Clover® 700 Series parts are also available.

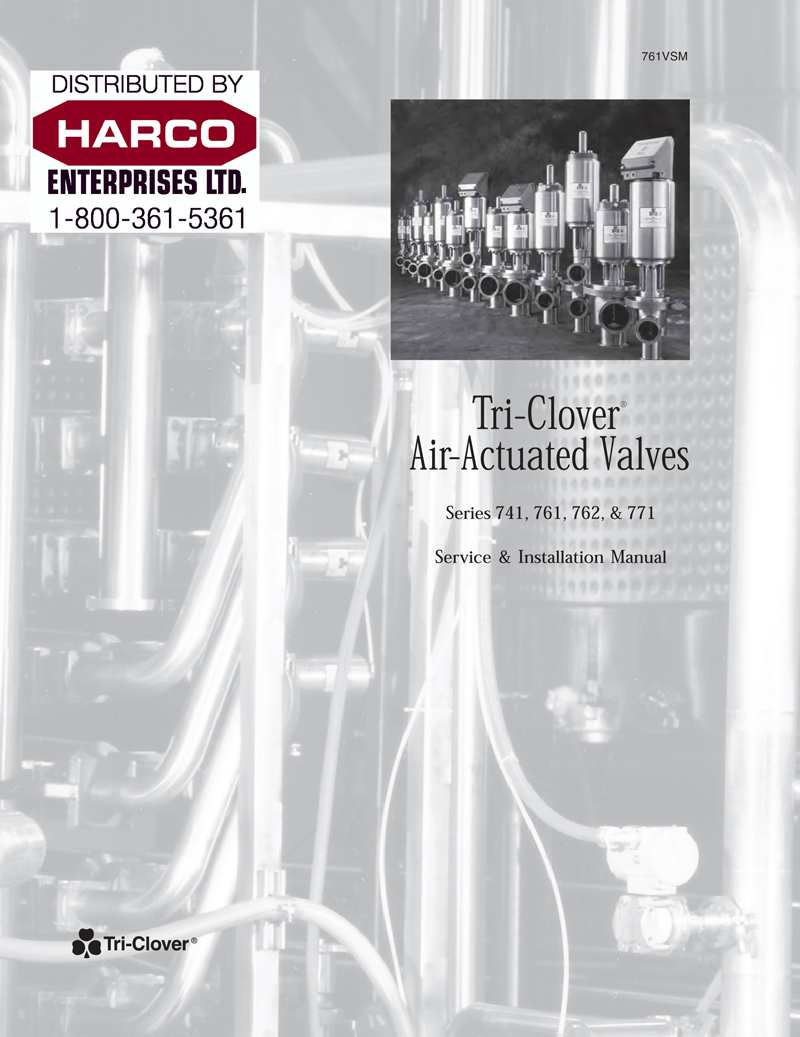

Click here for more information about 700 Series Valves.

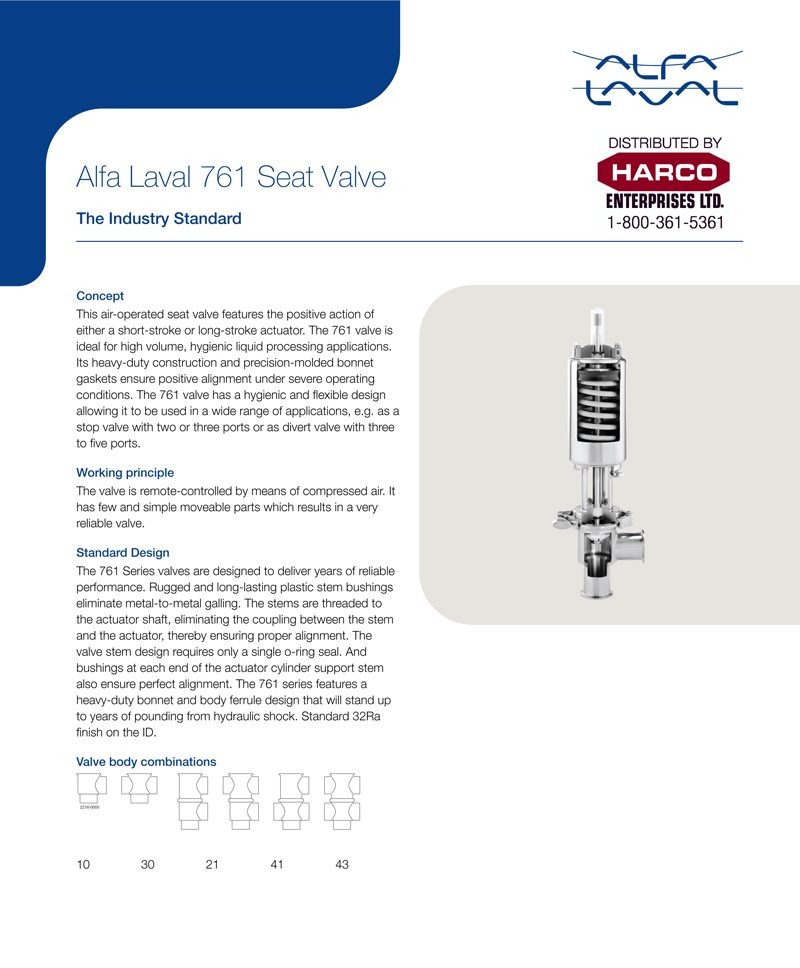

Click here for more information about 761 Series Valves.

SPARE PARTS

Tri-Clover 741/761 Valve Divert Valve Seal Kits

Material	Description	1.5″	2″	2.5″	3″	4″
Buna	Non TR Service Kit Buna	9613990327	9613990327	9613990508	9613990330	9613990333
EPDM	Non TR Service Kit EPDM	9613990328	9613990328	9613990509	9613990331	9613990334
SFY	Non TR Service Kit SFY	9613990329	9613990329	9613990510	9613990332	9613990335
Buna	TR Service Kit Buna	9613990106	9613990109	9613990112	9613990115	9613990118
EPDM	TR Service Kit EPDM	9613990107	9613990110	9613990113	9613990116	9613990119
SFY	TR Service Kit SFY	9613990108	9613990111	9613990114	9613990117	9613990120
Buna	TR2 Service Kits Buna	9613990575	9613990578	9613990581	9613990584	9613990587
EPDM	TR2 Service Kits EPDM	9613990576	9613990579	9613990582	9613990585	9613990588
SFY	TR2 Service Kits SFY	9613990577	9613990580	9613990583	9613990586	9613990589

Tri-Clover 741/761 Valve Shut-Off Valve Seal Kits

Material	Description	1”	1.5″	2″	2.5″	3″	4″
Buna	Non TR Service Kit Buna	9613990336	9613990339	9613990342	9613990345	9613990348	9613990351
EPDM	Non TR Service Kit EPDM	9613990337	9613990340	9613990343	9613990346	9613990349	9613990352
SFY	Non TR Service Kit SFY	9613990338	9613990328	9613990344	9613990347	9613990350	9613990353
Buna	TR Service Kit Buna	9613990088	9613990091	9613990094	9613990097	9613990100	9613990103
EPDM	TR Service Kit EPDM	9613990089	9613990092	9613990095	9613990098	9613990101	9613990104
SFY	TR Service Kit SFY	9613990090	9613990093	9613990096	9613990099	9613990102	9613990105
Buna	TR2 Service Kit Buna	9613990557	9613990560	9613990563	9613990566	9613990569	9613990572
EPDM	TR2 Service Kit EPDM	9613990558	9613990561	9613990564	9613990567	9613990570	9613990573
SFY	TR2 Service Kit SFY	9613990559	9613990562	9613990565	9613990568	9613990571	9613990574

ALFA LAVAL TRI-CLOVER® 762 SERIES VALVES

Harco offers the Alfa Laval Tri-Clover® 762 Flo-Diversion Valves for precise HTST applications in dairy, beverage, and food industries.

These rugged valves, in standard and Reverse-Acting variants, ensure product integrity with their robust design, 316L stainless steel construction, and FDA-compliant materials.

Explore the advanced Alfa Laval Tri-Clover® 762-227 Flo-Diversion Valve, an extension of the Tri-Clover® 761 Series, offering user-friendly features, sanitary compliance, and seamless integration options.

Harco is your go-to for Alfa Laval Tri-Clover® 762 Series parts, providing unparalleled excellence in fluid handling systems. Contact us to enhance your processes with reliable precision.
